More 1960s Meyer Snow Plow Installation/Instructions

• CATEGORIES: Documents, Features This site contains affiliate links for which I may be compensated.

Below are there additional Meyer-related Installation, service and instruction documents. First is four-page Form No. I-318R for installation of Meyer Power Angling:

1960-meyer-form-1-318R-sp-angle-plow-installation1-lores 1960-meyer-form-1-318R-sp-angle-plow-installation2-lores 1960-meyer-form-1-318R-sp-angle-plow-installation3-lores 1960-meyer-form-1-318R-sp-angle-plow-installation4-lores

Next is Form No. 1-119R9 for installation of snow plow lifts powered in several different ways:

1960-meyer-form-1-119R9-sp-installation1-lores

1960-meyer-form-1-119R9-sp-installation2-lores

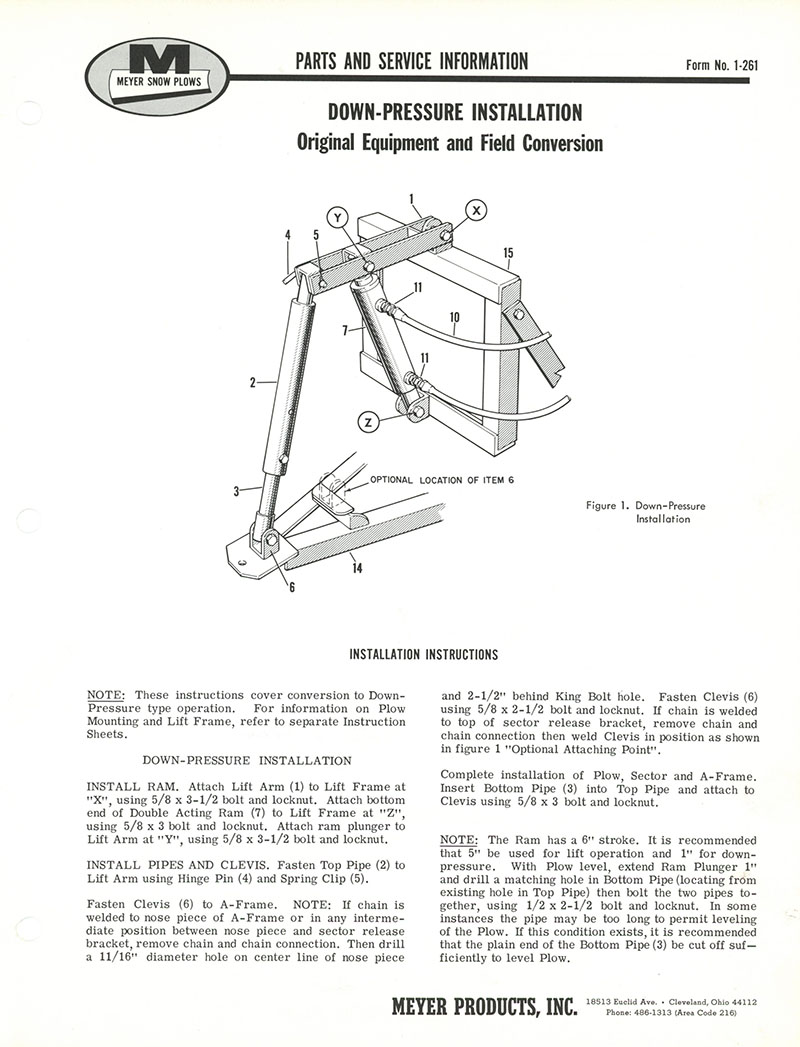

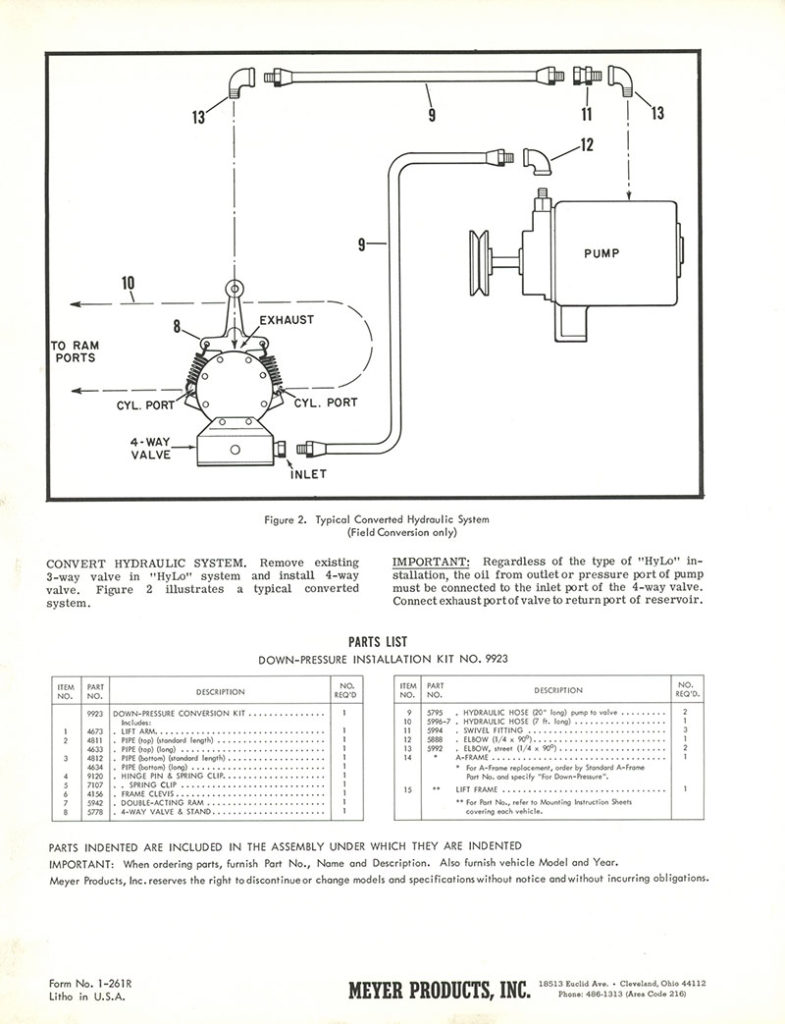

Finally, there’s Form No. I-261R for the conversion to down pressure plows:

1960-meyer-form-1-261R-down-pressure-hydraulic1-lores 1960-meyer-form-1-261R-down-pressure-hydraulic2-lores
