1948 CJ-2A Mount Shasta, CA $15,000

• CATEGORIES: CJ-2A • TAGS: This site contains affiliate links for which I may be compensated.

Has some mods.

http://siskiyou.craigslist.org/cto/5575753590.html

1947-cj2a-mountshasta-ca41 1947-cj2a-mountshasta-ca42 1947-cj2a-mountshasta-ca43 1947-cj2a-mountshasta-ca44

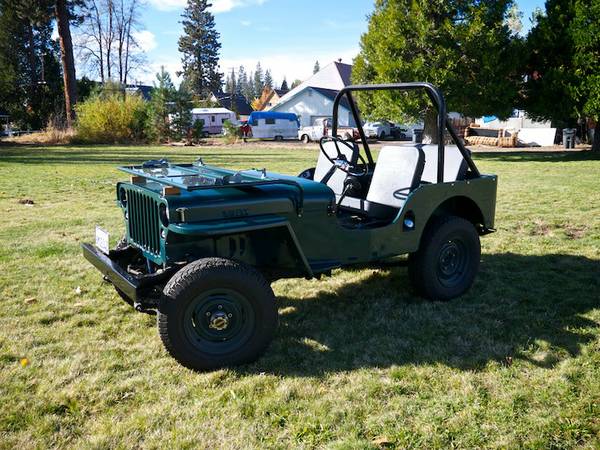

“For Sale: One of a Kind 1947 Willy’s Jeep (CJ-2A)
This Jeep has been carefully rebuilt from the ground up over 3 years by my father, a retired certified ASEA mechanic. Starting from a sandblasted frame, new-off-shelf (N.O.S) parts were used whenever possible. Every piece has been carefully rebuilt and reassembled – you won’t find a cleaner, or more authentic rebuild of a 1947 Willy’s. Lots of fun to take off-road, or cruise around town with the windshield down. See below for details on each component. Thanks!

Frame:
Complete frame-off restoration
Sand-blasted
New rear frame crossmember
Fully boxed front frame horns
Olive Drab DuPont Centari paint
Eight new spring hangers
Frame checked for alignment
Four springs re-arced, military double wrap
New bushings and pins, center bolts, four new spring shackles
Four new shock absorbers with eight new cotter pins bushings and washers

Rear Axle:
Dana 44 with flanged axle shafts
Four pinion Power Lock rear differential
New ring and pinion in a 4.88:1 ratio
Two new drum brakes (11″x2″ Wagoneer)

Front Axle:
Dana 25 with 4:88 Power Lock
Two new cross and roller U-joints
Two new sterring knuckle oil seals
All new bearings and seals
Warn locking hubs
Two new drum brakes (11″x2″ Wagoneer)
N.O.S. Master cylinder with D.O.T 5 brake fluid

Drivetrain:

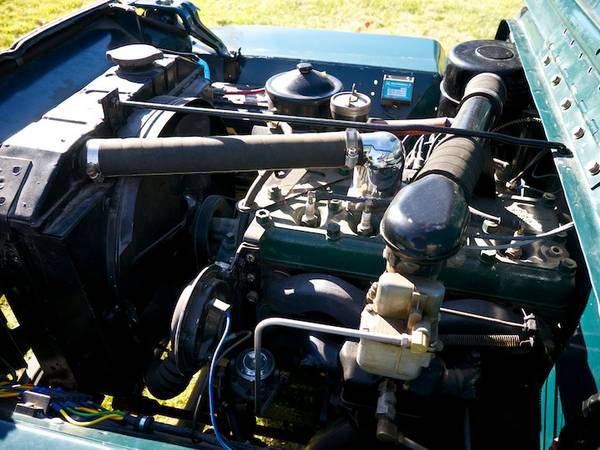

L4, 134 cubic inch Jeep flathead, previously re-manufactured – in excellent condition
Re-corded radiator with new hoses, including new anti-freeze
T-90 Borg Warner transmission
All new bearings & synchronizer rings
New second gear and reverse
New reverse idler gear
New low reverse sliding gear
Big Shaft Dana 18 transfer case (completely rebuilt)
New bearings and seals – standard 26 tooth
Four new driveline U joints
Two new engine mounts
New transmission mount

Fuel System:
New gas tank (standard 10 gallon)
New line and fuel pump
Re-conditioned Carter WO carburetor. (Comes with an additional re-conditioned carburetor.)
Orignal air cleaner system – oil bath
New exhaust system

Electrical System:
12v Optima battery
12v Motorola alternator
Remote solid state regulator
Completely re-wired
Integrated turn signals
All new gauges – amp, meter, oil pressure, gas temperature, speedometer
Standard Jeep horn (12v)

Body:
New reproduction steel Jeep body
N.O.S. WWII Military headlights, grill and hood
Bumperettes and pintle hook
N.O.S. front bumper

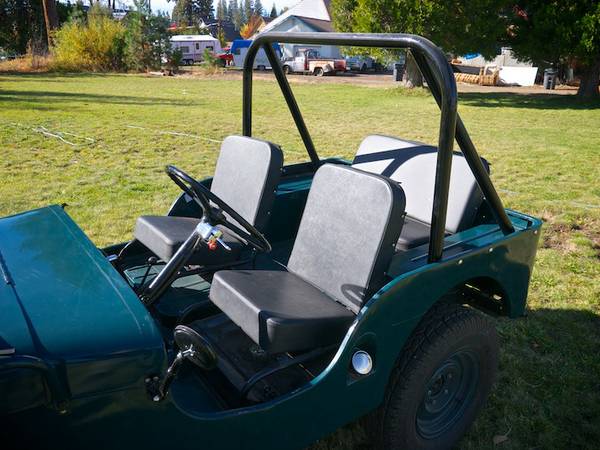

Newly re-upholstered seats with new cushions
Original equipment rear seat
N.O.S. steering wheel

Wheels & Tires:
Four new Armstrong Terra Trac all weather tires (P235-R15)
Wagoneer 15″x6″ JJ steel wheels

Manuals:
Original owners manual
Original shop manual”
