Monroe Hydraulic Lift Brochure

• CATEGORIES: Documents, Features This site contains affiliate links for which I may be compensated.

This Monroe Lift Brochure arrived while I was on vacation. It’s a great little brochure. The FarmJeep page has information on the Monroe lift, including this Monroe lift parts list.

Also, if you’ve never visited Clint Dixon’s Dodge Power Wagon Monroe Lift page, it’s worth a look. There he has some detailed drawing of the Monroe Lifts. He also has a great photo page that shows a Dodge Power Wagon and the Monroe Lift using different implements.

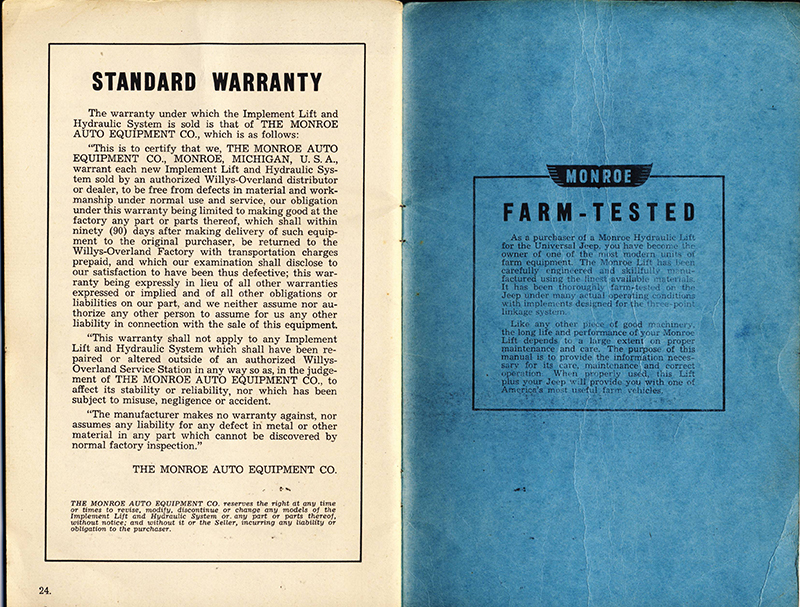

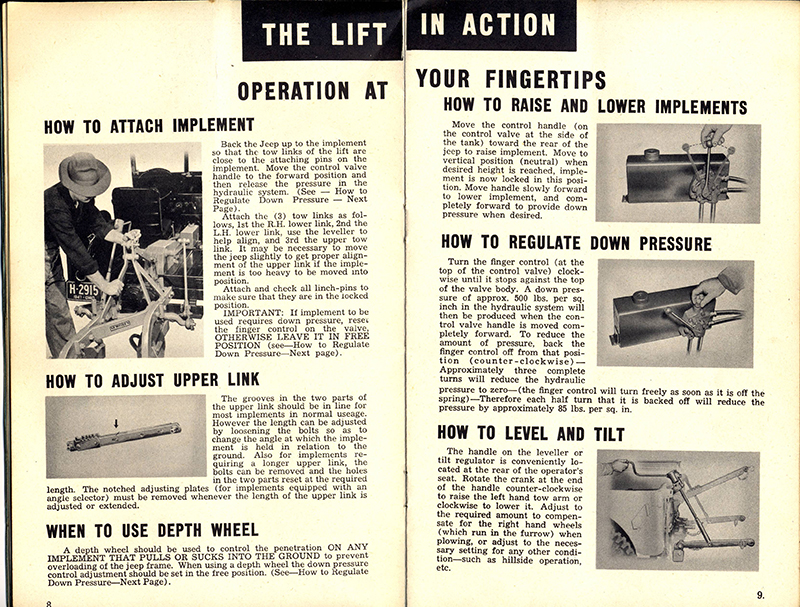

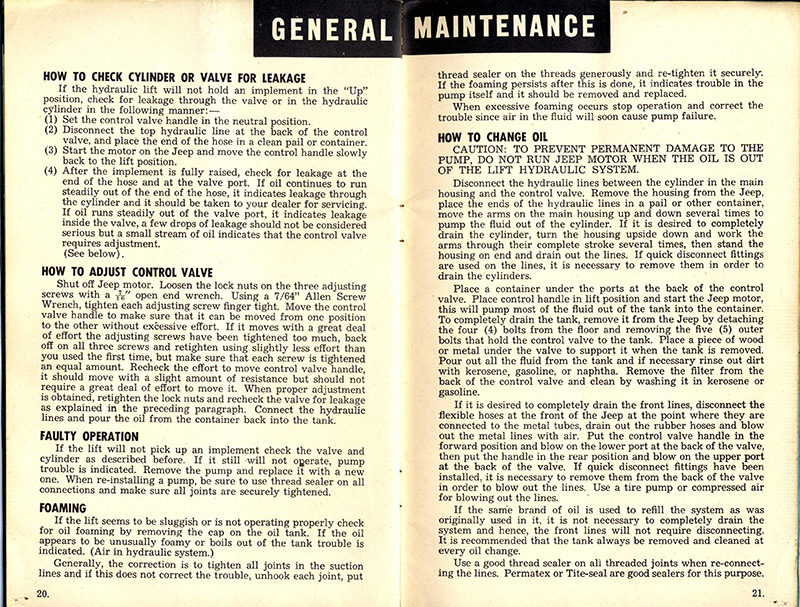

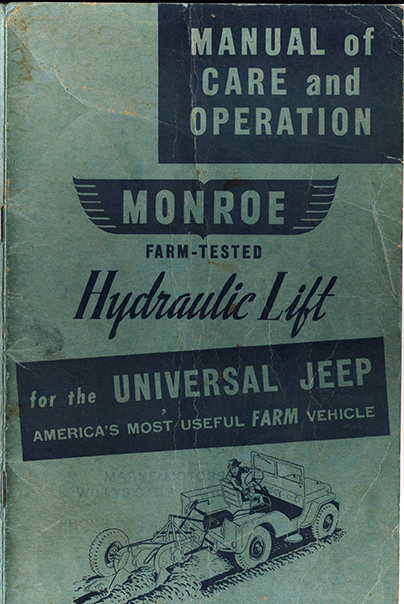

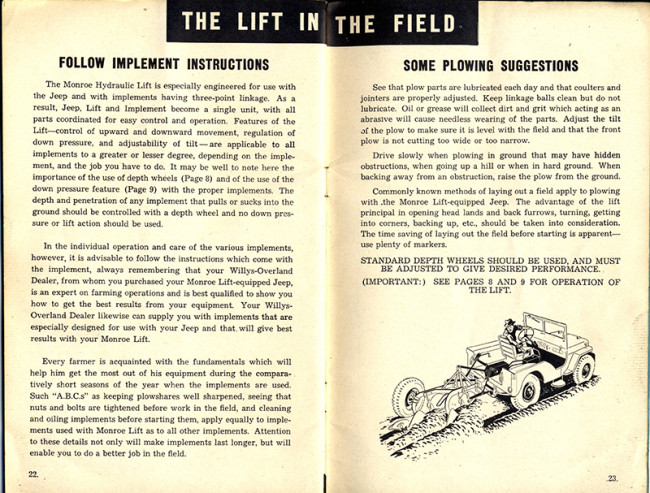

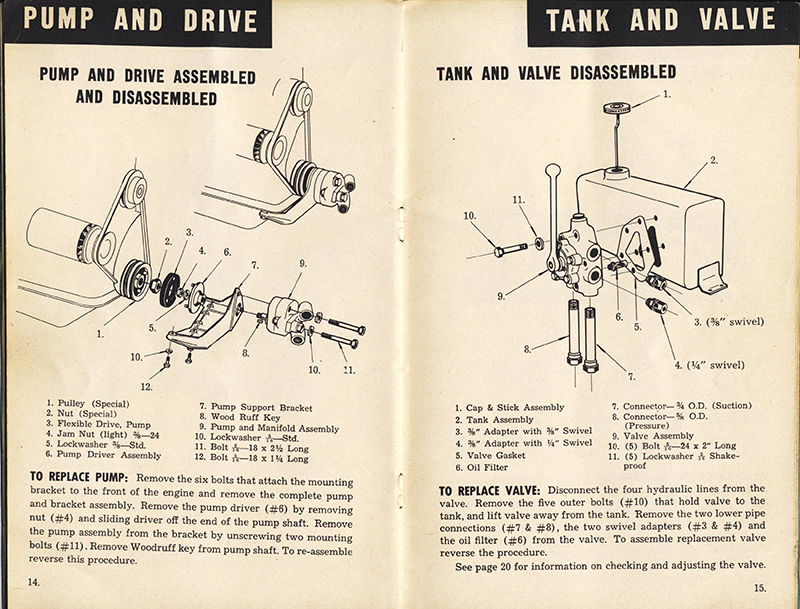

monroe-hydraulic-lift-hitch-manual1 monroe-hydraulic-lift-hitch-manual2 monroe-hydraulic-lift-hitch-manual3 monroe-hydraulic-lift-hitch-manual4

monroe-hydraulic-lift-hitch-manual5 monroe-hydraulic-lift-hitch-manual6 monroe-hydraulic-lift-hitch-manual7 monroe-hydraulic-lift-hitch-manual8 monroe-hydraulic-lift-hitch-manual9 monroe-hydraulic-lift-hitch-manual10 monroe-hydraulic-lift-hitch-manual11 monroe-hydraulic-lift-hitch-manual12 monroe-hydraulic-lift-hitch-manual13 monroe-hydraulic-lift-hitch-manual14 monroe-hydraulic-lift-hitch-manual15
